Newest Private Mold 300w 500w 600w 1000w 1600w Solar Street Lights For 10m Height IP66 waterproof

​DELIVERY​

1. For small orders of this solar street light, we have small quantity with export, delivery time around 2-3 days; for large orders, production time around 10-15 days;

2. Lamp body with & without " VIKSTARS " trademark will be shipped randomly, for small order, if have requirements for this pls let us know;

3.Price based on EXW term, not including tax or freight, but we can offer Logistics and customs clearance assistance.

​PARAMETERs​

.

LAMP NAME	L Series - Solar Street Lights
MODEL NO.	VS-SSL-L03	VS-SSL-L05	VS-SSL-L06	VS-SSL-L10	VS-SSL-L16
POWER	300W Project Solution	500W Project Solution	600W Project Solution	1000W Top-level Solution	1600W Top-level Solution
BATTERY	3.2V 24AH Lithium	3.2V 36AH Lithium	3.2V 60AH Lithium	3.2V 100AH Lithium	12.8V 60AH Lithium
SOLAR PANEL	Mono 5V 30W	Mono 5V 50W	Mono 5V 60W	Mono 6V 100W	Mono 18V 120W
LUMEN	1760lm	2880lm	3840lm	5400lm	10800lm
LED QTY	SMD5054*80PCS, 4-chip 1530			Brightlux SMD5050*80pcs, 4-chip 1734
BEAM ANGLE	120°
CCT	Cold White
CHARGE TIME	4-6 hours
LAST TIME	16-18 hours / 3-5 Rainy days
INSTALL HEIGHT	4-5m	4-6m	5-7m	6-8m	8-10m
LIGHT AREA	100㎡	200㎡	300㎡	400㎡	800㎡
WORK MODE	Intelligent Light control + Time Control + Remote Control
INSTALL WAY	Pole / Wall / Hug Hoop Installation (accessories not include hoop, need buy additionally)
WATERPROOF	IP66
MATERIAL	High Quality Aluminum Heat Sink + PC lens / Sand Grey
LAMP SIZE	550*255*90mm (same size for all series)
PANEL SIZE	530*350*17mm	670*445*25mm	670*535*25mm	670*915*30mm	670*1020*30mm
PACKING	Integrated Packing (Export Neutral Carton / VIKSTARS Brand / Customizing Packing)			Customized According to Projects
WARRANTY	2 Years warranty

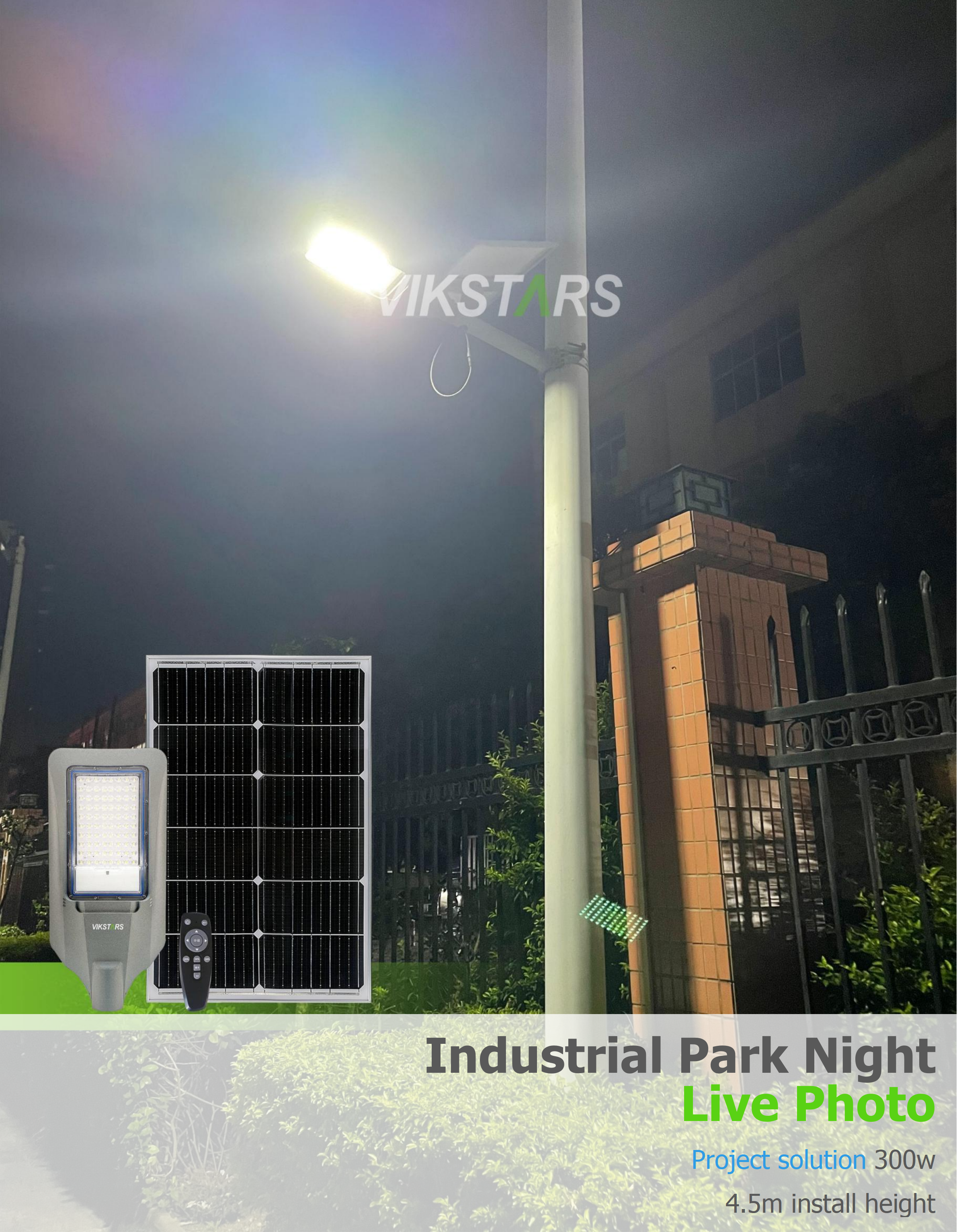

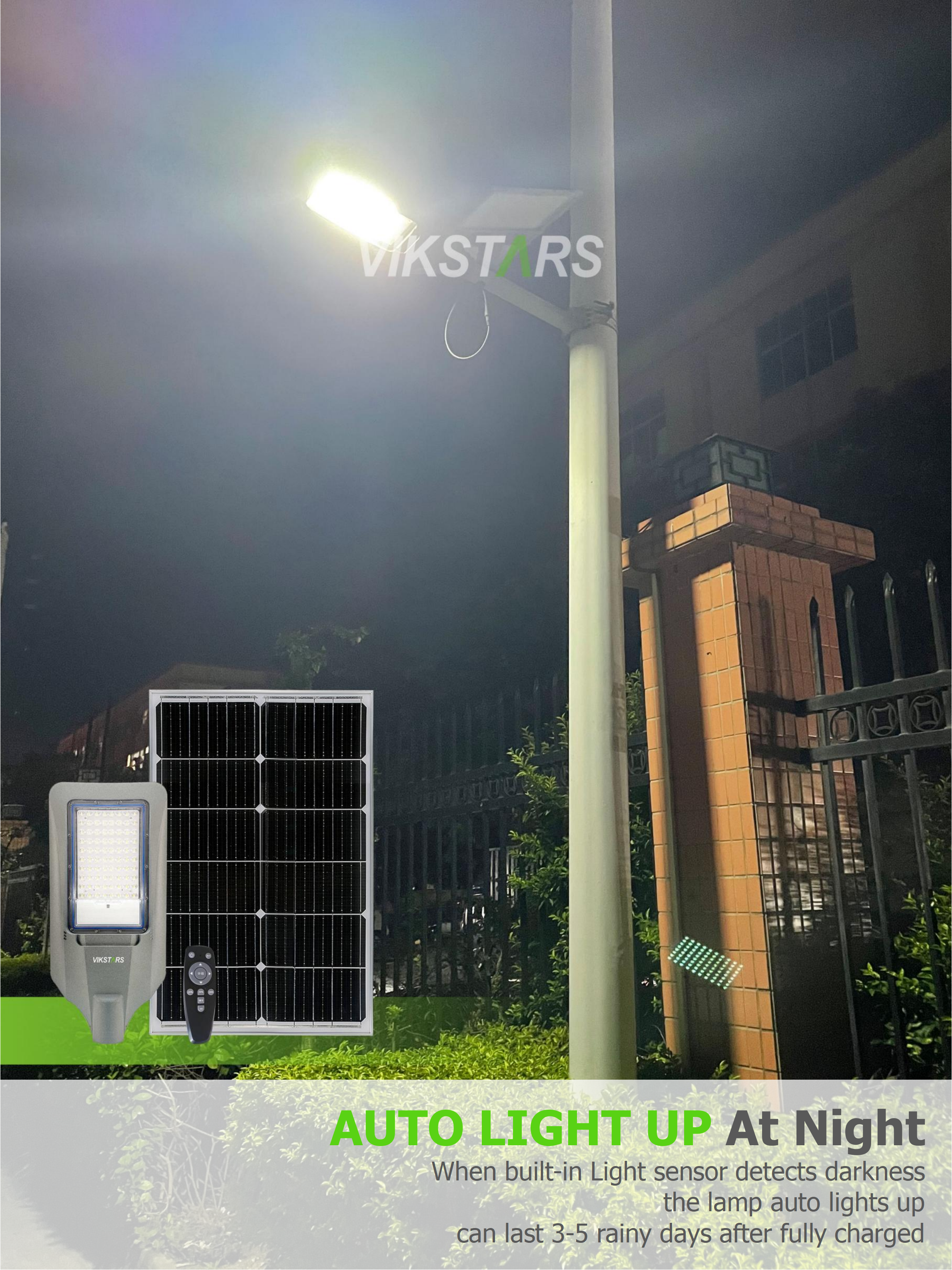

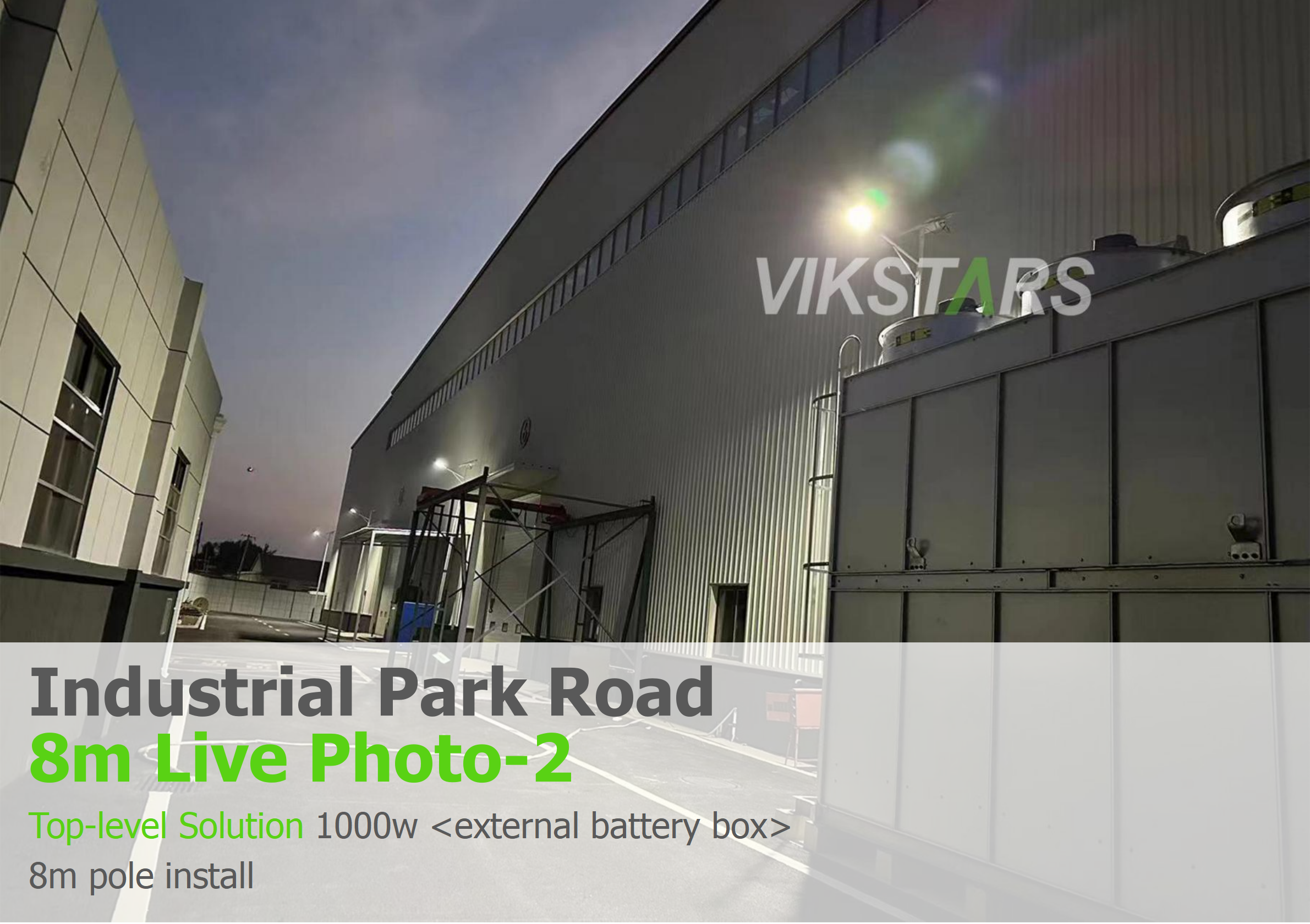

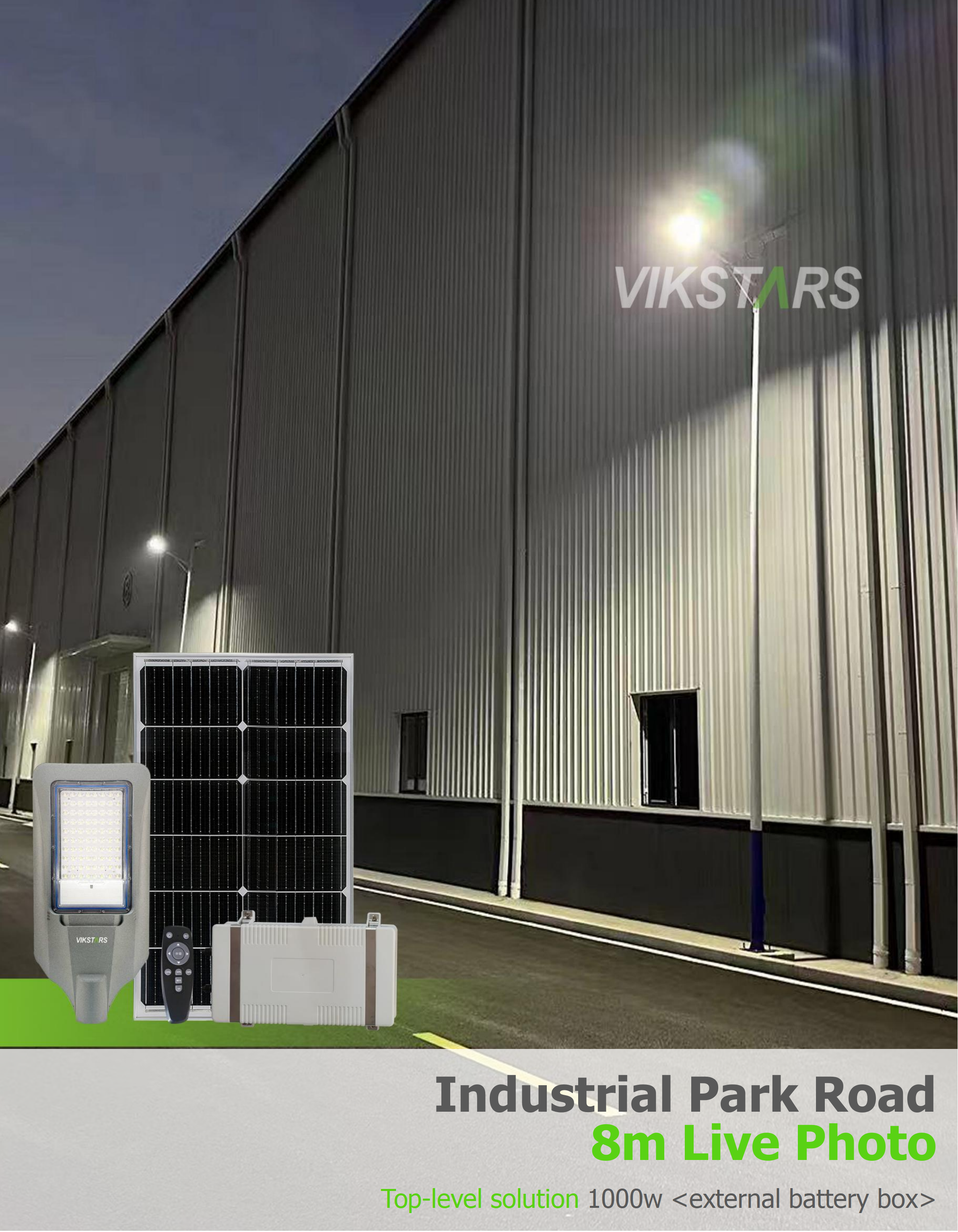

REAL PHOTOs​

SOLUTIONs

Project Solution--battery built-in 300w/500w/600w	Top-level Solution--external battery box 1000w/1600w

3 Installations of Project Solution
Top-level solution installation according to project

Wall Install	Pole Install	Hug Hoop Install

​ SIZEs​

Manually Measured, Tolerances Is Possible

same size for all watts	300w: 500mm length 500w: 600mm length	300w: total length 970mm 500w: total length 1070mm

project solution 300w	project solution 500w	project solution 600w

top-level solution 1000w solar panel	top-level solution 1600w solar panel

ACCESSORIEs

​ PACKING​

Solution	Power	Carton Size	pc/ctn	N.W.	Specification
Project Solution	300W	610*155*435mm	1pc/ctn	5.00kg	Battery built-in the lamp body, integrated packing
	500W	720*155*495mm	1pc/ctn	6.50kg
	600W	/	/	/	Battery built-in the lamp body, But because of the bigger size solar panel, need customize packing
Top-level Solution	1000W	/	/	/	Outter battery box, larger size solar panel, need customize packing according to the project
	1600W	/	/	/

300W/500W - Integrated Packing
600W with larger size solar panel, need to customize packing
