Bracket Install LED UFO High Bay Lights With Meanwell Driver Longlifespan 5 Years Warranty

​PARAMETERs​

LAMP NAME	UFO High Bay Light
MODEL NO.	VS-UFO-B05	VS-UFO-B10	VS-UFO-B15	VS-UFO-B20	VS-UFO-B24
POWER	50W	100W	150W	200W	240W
INSTALL HEIGHT	3-4m Distance 3-4m	5-7m Distance 5-7m	8-10m Distance 8-10m	10-12m Distance 10-12m	12-14m Distance 12-14m
LEDs QTY	98pcs	140pcs	210pcs	280pcs
BEAM ANGLE	90° For Regular (60°/120°)
VOLTAGE	85-265/277Vac
C.R.I.	70-80Ra
LIFESPAN	>50000Hrs
PF	> 0.9
CCT	Warm White / Nature White / Cold white
WORK TEMP	-20℃ - 50℃
WATERPROOF	IP65
INSTALL WAY	Hanging / Pole / Bracket Installation
PACKING	Export neutral carton packing / VIKSTARS brand packing / Customizing packing
MATERIAL	Die-casting Aluminum heat sink +PC lens/ Black

SOLUTIONs

SOLUTION	Selected Solution	Project Solution	Top-level Solution-A	Top-level Solution-B
LEDs	3030	3030	EMC3030	EMC3030
LUMEN EFFICIENCY	110lm/w	130lm/w	140lm/w	140lm/w
DRIVER	Big Chip Isolated Driver	Big Chip Isolated Driver	HGB- Meanwell Round Driver	XLG-Meanwell Long Driver
WARRANTY	3 years	3 years	5 Years	5 Years
50W Size	/	D240*H100.5	/	/
100W Size	D290*H100	D290*H113	D290*H100	D290*H108
150W Size	D340*H110	D340*H117	D340*H108	D340*H115
200W Size	D330*H115	D390*H127	D386*H118	D386*H118
240W Size	/	D390*H127	D386*H118	D386*H118

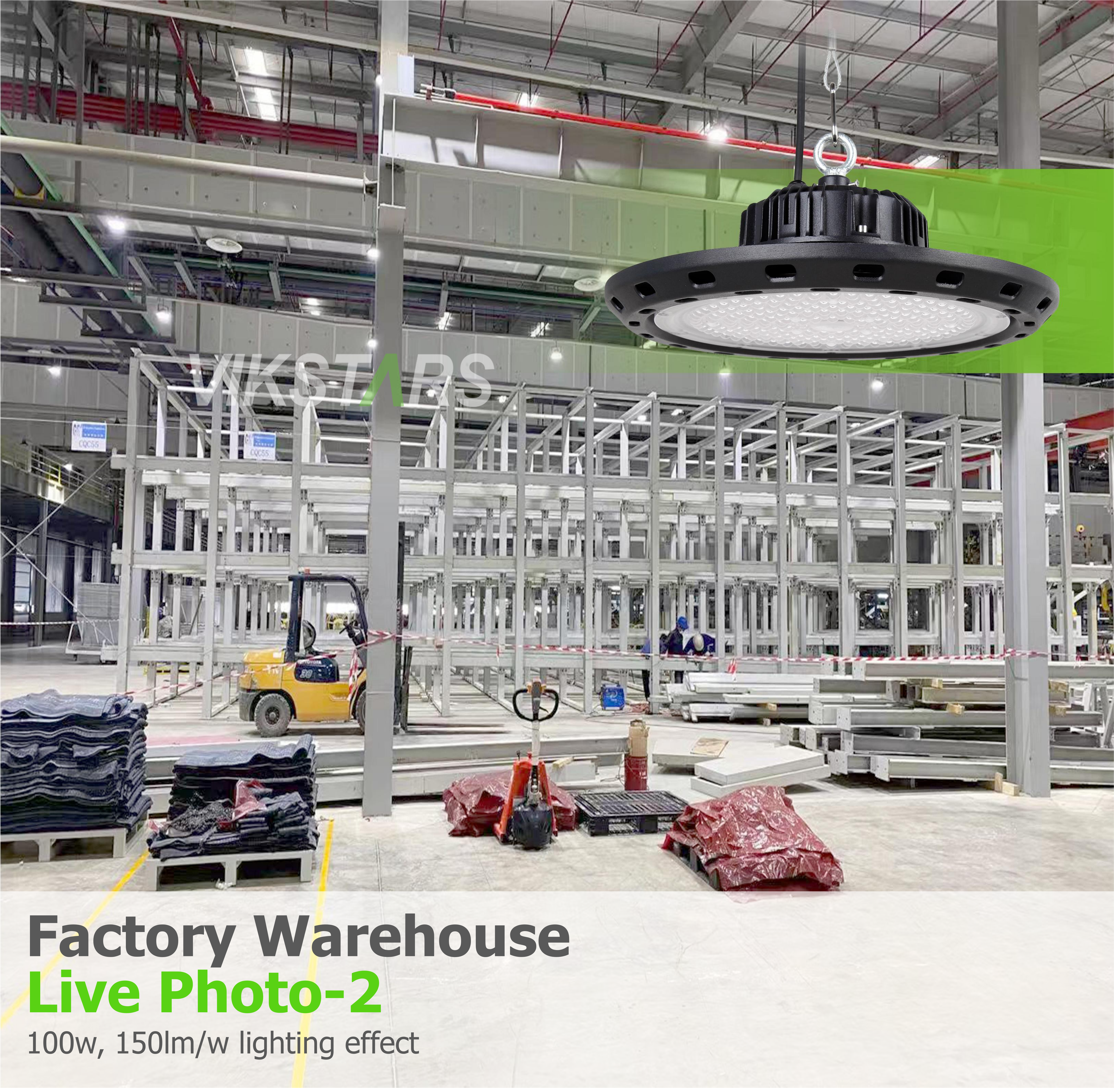

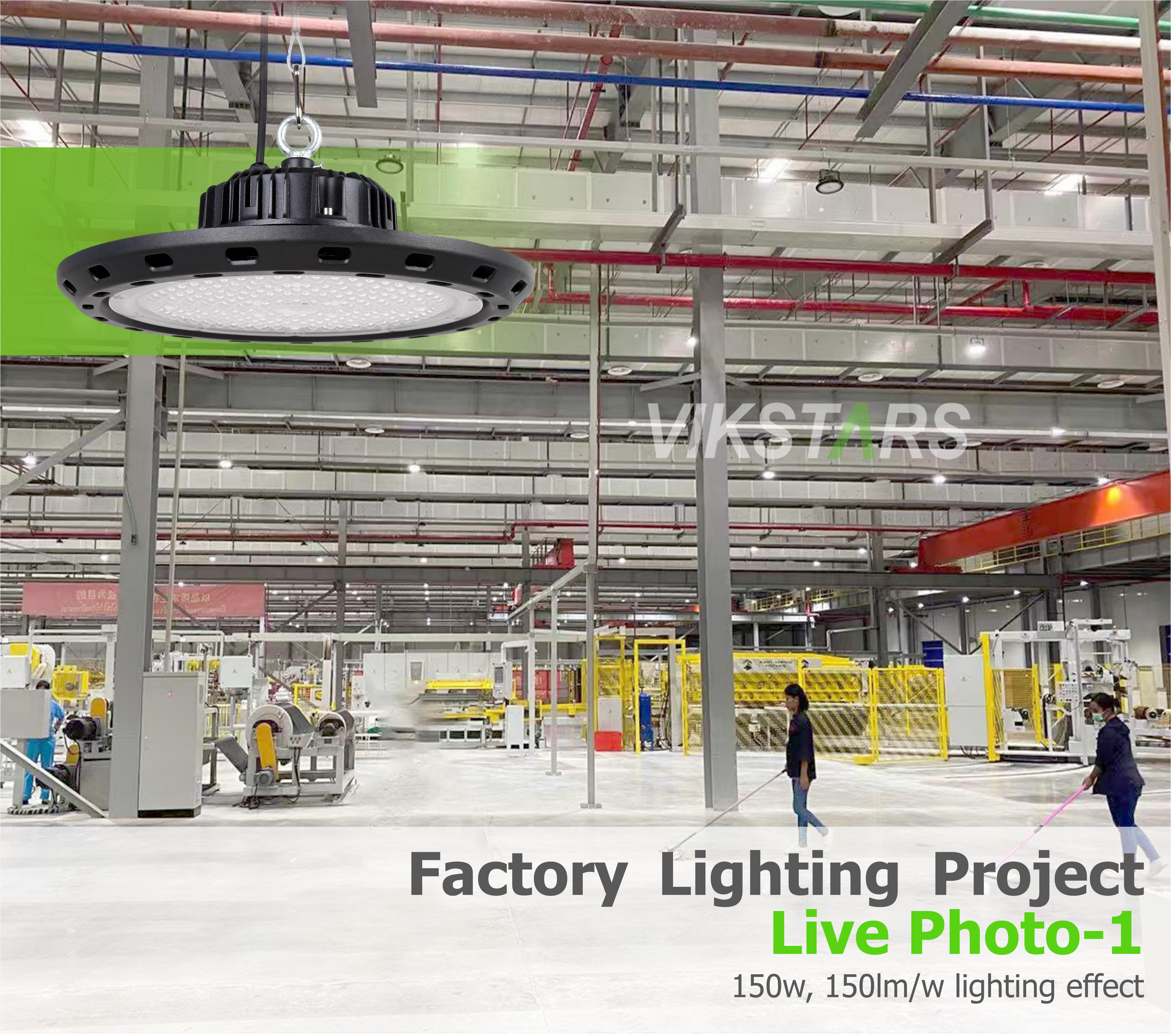

REAL PHOTOs​

INSTALLATION

Hanging Install	Pole Install	Bracket Install

​ SIZEs​

Manually Measured, Tolerances Is Possible

50W	100W
150W	200W/240W
	same size, different weight
